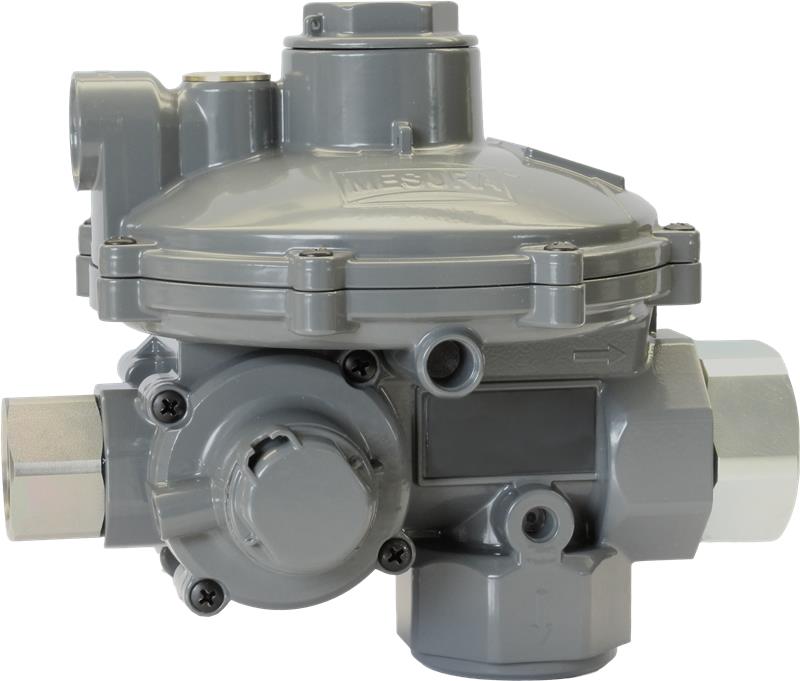

Type S9
Double Stage Pressure Regulators for North America

SPECIFICATIONS

Approvals:

• ANSI B109.5 (Draft)

Inlet Pressure:

• Up to 125 psig (8.6 barg)

Outlet Pressure Ranges:

• Base Pressure (BP): 6” w.c. to 2.1 psig, Medium Pressure (MP): 2 to 4.35 psig, Medium Pressure with diaphragm limiter (MPTR): 4.35 to 7.5 psig (0.3 to 0.54 barg)

Regulating Accuracy Classes:

• +2/-1” w.c., +/- 2” w.c., +/- 1% ABS, +/-2% ABS, AC5, AC10

Working Temperature Range

• -22^oF to 140^oF (-30^oC to 60^oC)

Inlet/Outlet Connections

• Linear or angled body (outlet on bottom), 1” NPT (inlet only), 25” NPT, 5” NPT, 2” NPT
