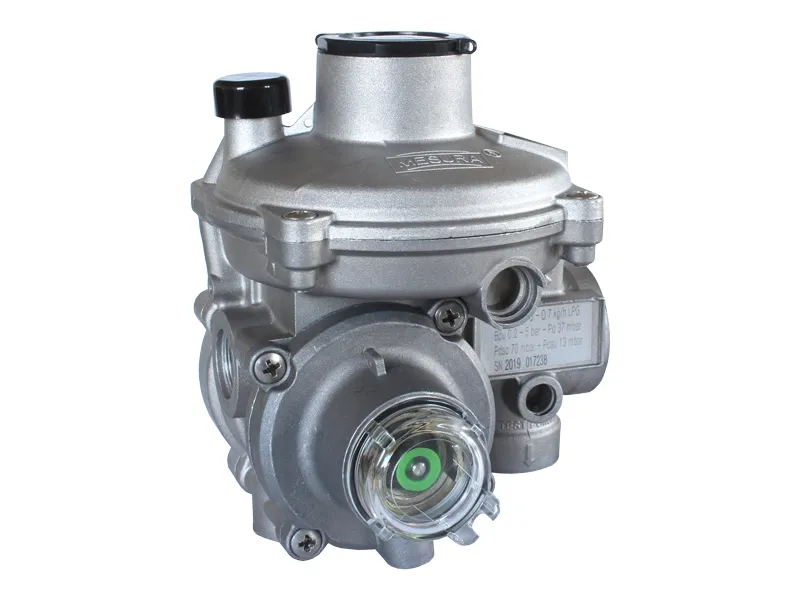

Type S7
Double Stage Pressure Regulators
The S7 series regulators are a line of direct action type pressure regulators, double stage, normally used for domestic applications, if directly assembled to the meter or in decompression installations in gas grids and industrial uses for natural and manufactured gas, lpg, or other non-corrosive preliminarily treated stable gas
SPECIFICATIONS
Body Material: Aluminium / Iron / Painted
Inlet Pressure: 0.5 ÷ 8.6 / 1 ÷ 8.6
Outlet Pressure: 14 ÷ 150(BP) 100 ÷ 500(MP)
Nominal Capacity: Up to 70 Nm³/h
Working temperature: – 30 °C ; + 60 °C
Inlet Connections: DN25; DN1”; 1/4”; 3/4”; 1”; 1/2”; 1”1/2
Outlet Connections: M20; 1”; 3/4”; 1/4”; 1”1/4; 1”1/2; 7/8”
