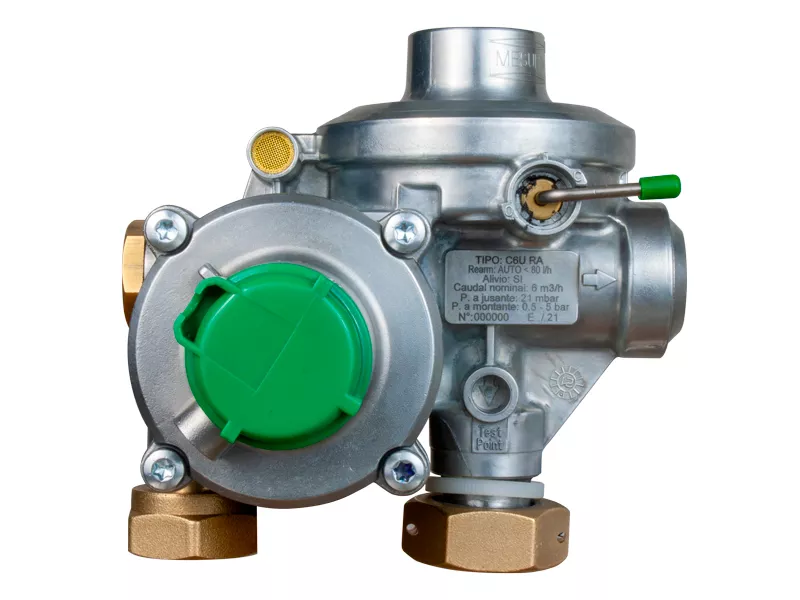

Type S1
Double Stage Pressure Regulators

The S1 series regulators are a line of direct action type pressure regulators, double stage, normally used for domestic applications, if directly assembled to the meter or in decompression installations in gas grids and industrial uses for natural and manufactured gas, lpg, or other non-corrosive preliminarily treated stable gas.

SPECIFICATIONS

H (angle horizontal connection) / M (straight connection) / U (Bottom entry)
Body Material: Zamak
Inlet Pressure: 0.5 ÷ 5 / 11 ÷ 100 mbar
Outlet Pressure: 11 – 100 mbar
Nominal Capacity: Up to 25 Nm³/h
Working temperature: – 40 °C ; + 60 °C
Inlet Connections: 3/4’’; 1’’; 1’’1/4
Outlet Connections: 1’’; 1’’1/4; 2’’

Made in France
MADE IN FRANCE
