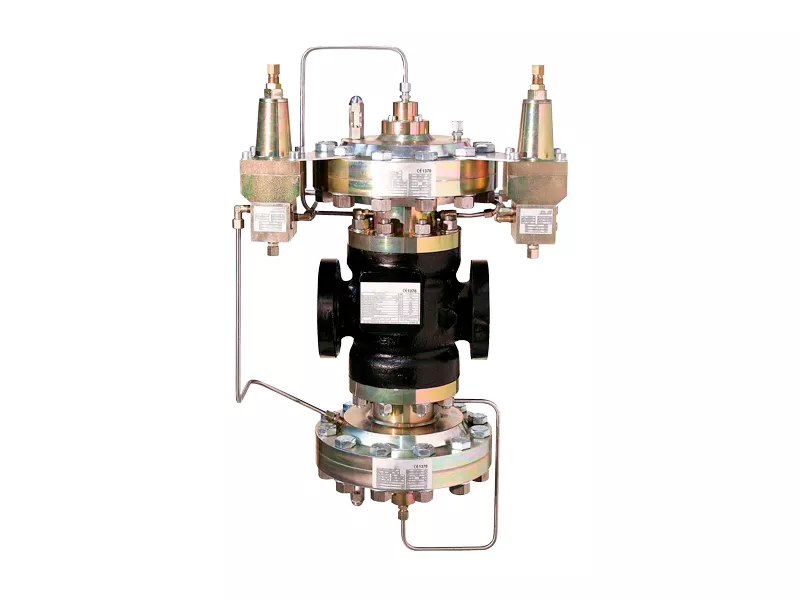

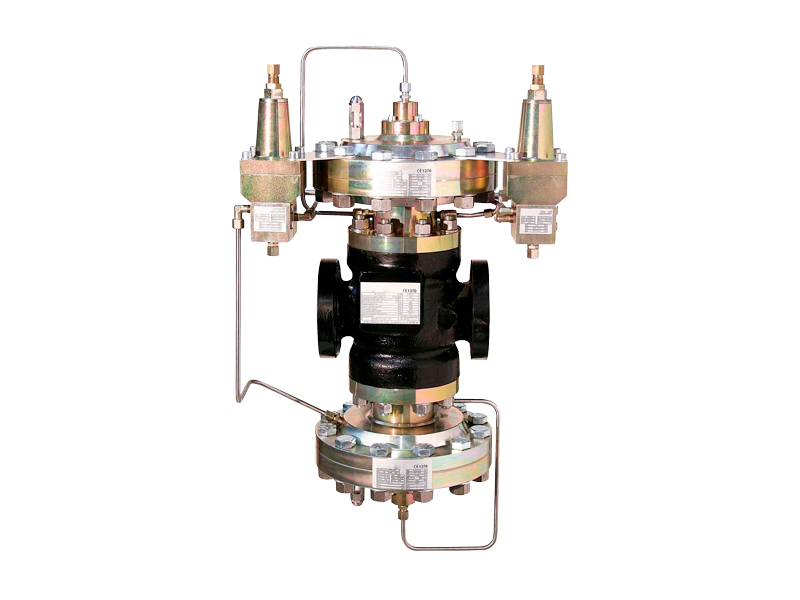

Type S25
Pilot Operating Pressure Regulators

S25 are a new line of pressure regulator – pilot-controlled – suitable for use in high pressure gas network with noncorrosive gas filtered at first.
The feature peculiar to S25 regulators is the trivalent operating, i.e. in a single body is united the following operations: main regulator, monitor, shut-off valve.
Special use of a single body allows to reduce overall dimensions of regulation units and solve problems of replacement or conversion of existing units out of standard.


Body Material: Iron / Painted
Inlet Pressure: 100
Outlet Pressure: 0.5 – 40 mbar
Nominal Capacity: request more information
Working temperature: -20 ÷ +60
Inlet Connections: DN25 – DN40 – DN50 – DN 80
Outlet Connections: DN25 – DN40 – DN50 – DN 80

Made in Italy
