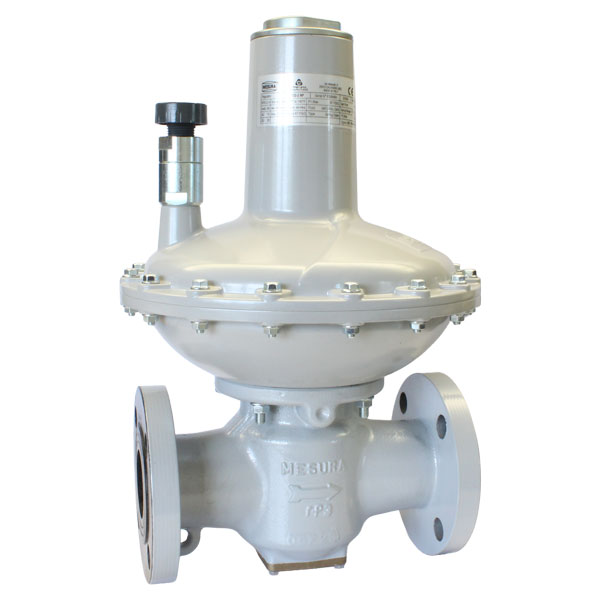

Type S22
Spring Loaded Pressure Regulators for North America
SPECIFICATIONS
Approvals:
- EN334
Inlet Pressure:
- Base Pressure(BP), Medium Pressure (MP) & Apex Pressure (AP): 87 psig (6 barg), Apex Piston Assembly (APA): 290 psig (20 barg)
Outlet Pressure Ranges:
- BP: 4” w.c. to 1.85 psig (10 to 130 mbar), MP: 1.7 to 7.25 psig (120 to 500 mbar), AP/APA: 7.25 to 58 psig (0.45 to 4 barg)
Regulating Accuracy Classes:
- AC5 (+/- 5%), AC10 (+/-10%)
Working Temperature Range
- -4°F to 140°F (-20°C to 60°C)
Inlet/Outlet Connections:
- NPS 1.5, NPS 2
Available Configurations:
- M: Monitor construction, B: With built-in slam shut valve (SSV), MB: Monitor construction with SSV
